XeVision® HID Xenon landing/taxi lights were selected by Diamond Aircraft as standard equipment for their innovative DA42 Twin Star, a production aircraft approved for IFR operations.
Twin Star photo by M. Wagner / aviation-images.com
https://aviation-images.com/
Kodiak by Quest Aircraft Company, standard with XeVision®
HID Xenon landing lights, including pulsing,
is a production aircraft approved for IFR operations
Photo courtesy of Questaircraft Company
XeVision®HID aircraft lighting kits
Check our cutting-edge high-intensity aircraft LED landing lights and LED taxi lights
Our HID Xenon lamps and HID Xenon lighting systems are suitable to replace your existing landing light. We offer HID conversions for existing standard lamps which are 'Plug & Play kits'.
We also have oval and rectangular designs for small spaces (wing-tip) and a retractable landing light system (under design).
Our highest quality HID Xenon lamp conversion kits are competitively priced for experimental aircraft. Nevertheless, many pilots are choosing now our XeVision HID Xenon conversion kits for their production aircraft with FAA field approvals. Embry-Riddle Aeronautical University, Prescott AZ, has earned an FAA fleet field approval for their certified aircraft. Diamond Aircraft has chosen our XeVision lights as standard equipment on their new production Twin Star DA42
Ambient heat generated by the HID Xenon lamps is substantially less than the standard landing lights which make their installation in composite a/c structures feasible.
Advantages of HID over conventional landing lights:
Manufacturer's Warranty is 5 (five) years or 3000 hours (35 watt lamp, 2000 hours for 50 watt)! Vibration safe - no filament Lower operating costs (low wattage 35 - 50 W, long bulb life) 30 times longer bulb life (typically greater than 3000 hours) Bright white-bluish (daylight) well-defined light pattern See better - be seen - safety with 3200/5300 lumens (35/50 W) Lower electric load - less than half the current Lower radiant heat - 150º F versus 300º F of incandescent lamps.
Altitude Limitation:
We have been working hard to establish and verify altitude characteristics, and we are able to fully warrant a
safe operating altitude of 35'000 ft. ISA
based on extended altitude tests in our lab.
This limitation is valid only for our XeVision HID aircraft lighting systems. HID Xenon lamps should not be turned on above 35'000 ft. ISA.
FAA approval information:
Even though our XeVision landing and taxi lights are for experimental aircraft, our HID aircraft lighting kits can be and have been approved for certified aircraft with FAA approval in numerous certified production aircraft.
Successful field approvals applications using FAA form 337 include (a copy will be provided upon request): Piper PA-44-180 fleet approval (see installation) Piper Arrow PA-28, Bonanza M-35, Cessna C-182, Cessna C-172, Mooney M-20, Cessna C-210 L, Grumman Tiger, Cessna 195, etc.
Our patented XeVision Pulsing System using XeVision's new proprietary XeStrike™ ballast and our XePulse™ pulsing modules modules allow now to reliably pulse ('wig-'wag') HID landing and taxi lights without degrading bulb life. All of our line of HID lights can be pulsed, including 35 and 50 watt systems.
For larger pictures, click on the thumbnail
XeVision landing & taxi light conversion kits with 35 & 50 watt, 3200 & 5300 lumens. All of our HID D1S systems with our XeStrike™ digital ballasts also comply with RTCA/DO-160E standards.
XV-36-SL
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
landing light
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
PAR 36 conversion, lamp diameter 4-5/16"
XV-36-ST
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
taxi light
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
PAR 36 conversion, lamp diameter 4-5/16"
XV-46-SL
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
landing light
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
PAR 46 conversion, lamp diameter 5-11/16"
XV-46-MT
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
taxi light
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
PAR 46 conversion,
lamp diameter 5-11/16"
XV-64
with XV4D ballast and D1S bulb or D2S and XeSParQ igniter (XV4D 75 W shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
search light / landing light for helicopters and agricultural a/c
35, 50, and 75 Watt output, 12/14 VDC or 24/28 VDC input,
3200, 5300, 8000 lumens,
PAR 64 conversion,
lamp diameter 8"
XeVision conversion kit & components
XV-36-SL
with XV4D ballast and D1S bulb (XV4D shown), select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
Check also RTV gasket accessory
preferred application:
landing light
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC, input 3200 or 5300 lumens, PAR 36 conversion, lamp diameter 4-5/16"
XV-36-ST
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
taxi light
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, PAR 36 conversion, lamp diameter 4-5/16"
XV-46-SL
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
landing light
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, PAR 46 conversion, lamp diameter 5-11/16"
XV-46-MT
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
taxi light
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, PAR 46 conversion, lamp diameter 5-11/16"
XV-64
with XV4D ballast and D1S bulb or D2S and XeSParQ igniter (XV4D 75 W shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
search light / landing light for helicopters and agricultural a/c
key features & other information
35, 50, and 75 Watt output, 12/14 VDC or 24/28 VDC input, 3200, 5300, 8000 lumens, PAR 64 conversion, lamp diameter 8"
Check for beam angle information. Check for GE Sealed Beam lamps cross reference table
We support aircraft group buys!
top
XeVision landing & taxi light kits for new installations with 35 & 50 watt, 3200 & 5300 lumens. All of our HID D1S systems with our XeStrike™ digital ballasts also comply with RTCA/DO-160E standards.
XV-23
with XV4D ballast and premium D1S bulb (XV4D shown).
select 1 of 4 pre-assembled
cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
Serves a a combination of taxi and landing light in wing area or externally mounted
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
Lamp fixture, rectangular, only 2.25" high.
XV-22
with XV4D ballast and premium D1S bulb (XV4D shown).
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
Serves a a combination of taxi and landing light, externally mounted
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
Lamp fixture, oval, multi surface.
XV-19
with XV4D ballast and D1S bulb (XV4D shown),
no lens, (*) special warranty limitation applies
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
Serves a a combination of taxi and landing light for protected wing and wing tip area - our smallest!
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens, lamp fixture, rectangular, with an extremely low profile of only 1.9" height.
XV-54-SL
with XV4D ballast and D1S bulb (XV1D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
taxi light
spot 8°
(circular)
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens, Lamp fixture, rectangular 5.2 x 4.38", with a narrow beam pattern.
XV-54-FT
with XV4D ballast and D1S bulb (XV1D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
taxi light
beam angle 45º x 45º
(square)
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens,
lamp fixture, rectangular 5.2 x 4.38", with a wide beam pattern.
XV-38-WL
with XV4D ballast and D1S bulb (XV4D shown),
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
landing/taxi light
wide spot 16° x 8°
(oval)
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens, lamp fixture, round 4.81" dia, with a narrow beam pattern.

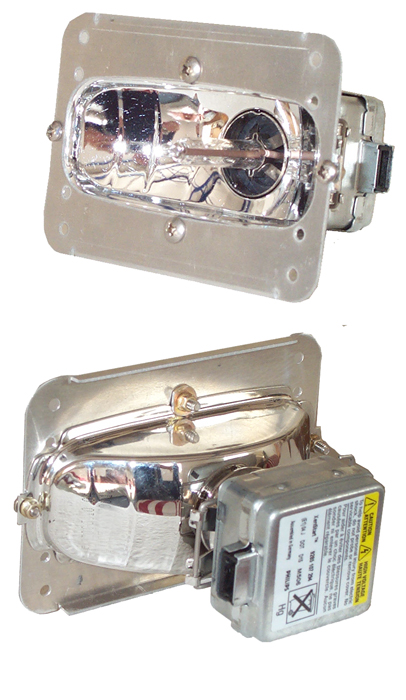

XV-19-W
Our very popular XV-19,
now with adapter kit for Whelen 70346, XV4D ballast and D1S bulb, 35 or 50 watt.
Serves a a combination of taxi and landing light. Replaces Whelen halogen type lamp, model 70346, with identical footprint. Mounting kit with stainless steel adapter and SS hardware.
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens.For aircraft with Whelen Halogen lamp,
model 70346 as on Diamond Aircraft DA40, Columbia, Cirrus, Grumman Tiger AG5B, and many more.
NOTE: STC available on request for the DA40.
XV-36-H2
with XV4D ballast and D1S bulb,
specify:
landing XV-36-SL-H2
or
taxi XV-36-ST-H2
4 or 6 foot pre-assembled cable
Landing or taxi light for external applications like mounted on landing gear struts, for any rugged external vehicle like utility trucks, off-road, heavy equipment
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens, water tight, housing impact resistant PPS, anodized Al bezel, housing two axes adjustable.
More lamp views:
XeVision conversion kit & components
XV-23
with XV4D ballast and premium D1S bulb (XV4D shown).
select 1 of 4 pre-assembled
cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
Serves a a combination of taxi and landing light in wing area or externally mounted
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, rectangular, only 2.25" high
XV-22
with XV4D ballast and premium D1S bulb (XV4D shown).
select 1 of 4 pre-assembled cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
Serves a a combination of taxi and landing light, externally mounted
key features and other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, oval, multi surface
XV-19
with XV4D ballast and D1S bulb (XV4D shown), no lens, (*) special warranty limitation applies select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
Serves a a combination of taxi and landing light for protected wing and wing tip area - our smallest!
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, rectangular, with an extremely low profile of only 1.9" height
XV-54-SL
with XV4D ballast and D1S bulb (XV1D shown), select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
taxi light
spot 8°
(circular)
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, rectangular 5.2 x 4.38", with a narrow beam pattern
XV-54-FT
with XV4D ballast and D1S bulb (XV1D shown), select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
taxi light
beam angle 45º x 45º
(square)
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, rectangular 5.2 x 4.38", with a wide beam pattern
XV-38-WL
with XV4D ballast and D1S bulb (XV4D shown), select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
landing/taxi light
wide spot 16° x 8°
(oval)
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, Lamp fixture, round 4.81" dia, with a narrow beam pattern
XV-19-W
Our hot runner XV-19, now with adapter kit for Whelen 70346, XV4D ballast and D1S bulb, 35 or 50 watt.
preferred application:
Serves a a combination of taxi and landing light. Replaces Whelen halogen type lamp, model 70346, with identical footprint. Mounting kit with stainless steel adapter and SS hardware.
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens. For aircraft with Whelen Halogen lamp, model 70346 as on Diamond Aircraft DA40, Columbia, Cirrus, Grumman Tiger AG5B, and many more. NOTE: STC available on request for the DA40.
XV-36-H2
with XV4D ballast and D1S bulb, specify: landing XV-36-SL-H2 or taxi XV-36-ST-H2 4 or 6 foot pre-assembled cable
preferred application:
Landing or taxi light for external applications like mounted on landing gear struts, for any rugged external vehicle like utility trucks, off-road, heavy equipment
key features & other information
used with XV-36 lamps, 35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, water tight, housing impact resistant PPS, anodized Al bezel, housing two axes adjustable. More lamp views:
XV-36-H2 taxi light configuration
XV-36-H2 dimensions (CAD)
Check physical data
check price list
Check the Physical data table or the Beam angle information and here for GE Sealed Beam lamps cross reference table
top
Complete self contained lamp based on the XV-36 with integrated XV4D ballast with 35 & 50 watt, 3200 & 5300 lumens. All of our HID D1S systems with our XeStrike™ digital ballasts also comply with RTCA/DO-160E standards.
XV-36-H1 self contained
with XV4D ballast and premium D1S bulb (XV4D shown).
select 1 of 4 pre-assembled
cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
Landing or taxi light for external applications like mounted on landing gear struts.
DPM or on/off remote switching on special request only.
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input,
3200 or 5300 lumens, water tight, rigid powder coated Al housing, small footprint, easy to wire (pwr and grd). Glass lens.
dimensions of XV-36-H1 lamp (CAD)
Check physical data
XeVision conversion kit & components
XV-36-H1 self contained lmp
with XV4D ballast and premium D1S bulb (XV4D shown). select 1 of 4 pre-assembled cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
Landing or taxi light for external applications like mounted on landing gear struts.
DPM or on/off remote switching on special request only.
key features & other information
35 or 50 Watt output, 12/14 VDC or 24/28 VDC input, 3200 or 5300 lumens, water tight, rigid powder coated Al housing, small footprint, easy to wire (pwr and grd). Glass lens.
side view of XV-36-H1 lamp (CAD)
dimensions of XV-36-H1 lamp (CAD)
Check physical data
check price list
Check the Physical data table or the Beam angle information and here for GE Sealed Beam lamps cross reference table
top
US Patent # 7,615,941.
For all aircraft conversion kits and new installation kits with 35/50 watt
XePulse™ 2
- module 8 - 32 VDC
- D-SUB DB9 connector and pins
- requires XV4D series ballasts
- optional wire harness
For all aircraft applications.
For any special industrial or military application.
Our new HID Xenon capable pulsing system XePulse™ 2 is specially designed to safely and reliably drive our proprietary electronic D-series XV4D XeStrike™ ballast. Alternating or simultaneous pulsing rate ('wig-wag' rate) is preset to 1Hz (60 pulses per minute on each channel). The XePulse™ 2 module is capable of driving up to 250 HID lamps per channel.
Wire harness for XePulse™ 2
D-SUB DB9 connector and color coded wires of 1 m (3.3 ft) length.
For XePulse II™ module
Prewired DSUB DB9 harness for the XePulse™ 2 for all wiring combinations.
XePulse™ 1
12 VDC or 24 VDC
discontinued (no new purchases)
For all aircraft applications. For any special industrial or military application.
Our patented HID Xenon capable pulsing system XePulse™ 1 (XV-PCM1) is specially designed to safely and reliably drive our proprietary electronic XeStrike™ ballast series.
Alternating or simultaneous pulsing rate ('wig-wag' rate) is preset to 1Hz (60 pulses per minute on each channel). The XePulse™ 1 module is capable of driving various HID loads.
Pulsing system
with one XePulse™ 2, and one or more digital XeStrike™ ballasts, one or more XeVision landing or taxi light kits, two shielded MQS wire harnesses,
select 1 of 4 pre-assembled MQS lamp cable lengths:
1 ft., 2 ft., 4 ft., 6 ft.
For all aircraft applications. For any industrial or military application.
XeVision conversion kit & components
XePulse™ 2
- - module 8 - 32 VDC
- - D-SUB DB9 connector and pins
- - requires XV4D series ballasts
- - optional wire harness
preferred application:
For all aircraft applications.
For any special industrial or military application.
key features & other information
Our new HID Xenon capable pulsing system XePulse™ 2 is specially designed to safely and reliably drive our proprietary electronic D-series XV4D XeStrike™ ballast. Alternating or simultaneous pulsing rate ('wig-wag' rate) is preset to 1Hz (60 pulses per minute on each channel). The XePulse™ 2 module is capable of driving up to 250 HID lamps per channel. check price list
Wire harness for XePulse™ 2
D-SUB DB9 connector and color coded wires of 1 m (3.3 ft) length.
preferred application:
For XePulse II™ module
key features & other information
Prewired DSUB DB9 harness for the XePulse™ 2 for all wiring combinations.
XePulse™ 1
12 VDC or 24 VDC
preferred application:
For all aircraft applications. For any special industrial or military application.
key features & other information
Our patented HID Xenon capable pulsing system XePulse™ 1 (XV-PCM1) is specially designed to safely and reliably drive our proprietary electronic XeStrike™ ballast series. Alternating or simultaneous pulsing rate ('wig-wag' rate) is preset to 1Hz (60 pulses per minute on each channel). The XePulse™ 1 module is capable of driving various HID loads.
discontinued (no new purchases)
Pulsing system
with one XePulse™ 2, and one or more digital XeStrike™ ballasts, one or more XeVision landing or taxi light kits, two shielded MQS wire harnesses, select 1 of 4 pre-assembled MQS lamp cable lengths: 1 ft., 2 ft., 4 ft., 6 ft.
preferred application:
For all aircraft applications. For any industrial or military application.
key features & other information
35/50 Watt output, 12/14 VDC or 24/28 VDC input
Check the Physical data table or the Beam angle information and here for GE Sealed Beam lamps cross reference table
top
XV-16-RP
with XVD2 ballast XV-16-RP
with ballast with integral AC or DC output HID burner, lamp, and 17 inch output cable with socket for D2 type bulbs. 35 watt only.
recognition / position light for applications like wing leading edge illumination, not recommended as taxi and landing light
2 inch (50 mm) diameter lamp with housing and lens, lamp output color temperature is 5000º K, approx. 2000 lumens
XeSparQ MR-16-RP
with our XeStrike™ ballast, lamp with XeSparQ-D1 MR-16 bulb, and XV4D ballast. Cable length up to 6 feet. 35 watt only.
recognition / position light for applications like wing leading edge illumination. Not recommended for landing or taxi light applications
2 inch (50 mm) diameter lamp and housing
and lens, lamp output color temperature is 4200º K, approx. 3000 lumens
XeVision conversion kit & components
XV-16-RP
with XVD2 ballast XV-16-RP with ballast with integral AC or DC output HID burner, lamp, and 17 inch output cable with socket for D2 type bulbs. 35 watt only.
preferred application:
recognition / position light for applications like wing leading edge illumination, not recommended as taxi and landing light
key features & other information
2 inch (50 mm) diameter lamp with housing and lens, lamp output color temperature is 5000º K, approx. 2000 lumens
Discontinued (no new purchases, bulb no longer in production)
XeSparQ MR-16-RP
with our XeStrike™ ballast, lamp with XeSparQ-D1 MR-16 bulb, and XV4D ballast. Cable length up to 6 feet. 35 watt only.
preferred application:
recognition / position light for applications like wing leading edge illumination. Not recommended for landing or taxi light applications
key features & other information
2 inch (50 mm) diameter lamp and housing and lens, lamp output color temperature is 4200º K, approx. 3000 lumens
Discontinued (no new purchases, bulb no longer in production)
XV-36-UMK
Universal mounting from the side and the rear. Predrilled mounting holes for 3/16 bolts. Lamp can be freely mounted 360º. Stainless steel plate, predrilled with hardware for XV-36, examine the CAD model of UMK
Adapter kit for XV-19 to Whelen model 70346
Adapter kit only for existing XV-19 customers.
Kit with stainless steel adapter and SS hardware, no XV-19 lamp kit included. Compare our XV-19-W kit.
Weight of adapter kit, including nuts and bolts is 1 oz
Click-Bond ballast mounting kits
For mounting one or two XeStrike™ ballasts to the airframe. Depending on ballast, includes 3, 4 or 6, 8 3/16" metal base plates with studs, and glue kit.
XVCBS-1-3 kit with 3 studs for one XV4D 35 or 50 W
XVCBS-1-4 kit with 4 studs for one XV4D 75 W model
XVCBS-2-6 kit with 6 studs for two XV4D 35 or 50 W
XVCBS-2-8 kit with 8 studs for two XV4D 75 W model
RTV spacer ring or gasket
RTV spacer ring or gasket for XV-36 lamps. Color is black.
XeVision products
XV-36-UMK
Universal mounting from the side and the rear. Predrilled mounting holes for 3/16 bolts. Lamp can be freely mounted 360º. Stainless steel plate, predrilled with hardware for XV-36, examine CAD model of UMK
More information
Adapter kit for XV-19 to Whelen model 70346
Adapter kit for XV-19 to Whelen model 70346
Adapter kit only for existing XV-19 customers. Kit with stainless steel adapter and SS hardware, no XV-19 lamp kit included. Compare our XV-19-W kit.
Weight of adapter kit, including nuts and bolts is 1 oz
More information
Click-Bond ballast mounting kits
For mounting one or two XeStrike™ ballasts to the airframe. Depending on ballast, includes 3, 4 or 6, 8 3/16" metal base plates with studs, and glue kit.
XVCBS-1-3 kit with 3 studs for one XV4D 35 or 50 W
XVCBS-1-4 kit with 4 studs for one XV4D 75 W model
XVCBS-2-6 kit with 6 studs for two XV4D 35 or 50 W
XVCBS-2-8 kit with 8 studs for two XV4D 75 W model
More information
RTV spacer ring or gasket
RTV spacer ring or gasket for XV-36 lamps. Color is black.
More information
We use only premium quality third generation D1S bulbs with integrated igniter and separate electronic ballast for our aerospace HID lighting products. This - and the use of our double shielded output cables - results in greatly reduced EMI and RFI which meet or exceed DO-160E standards.
